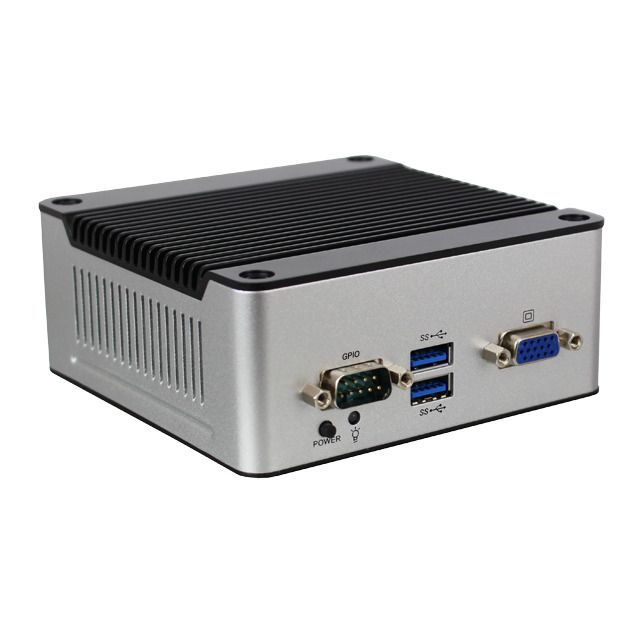

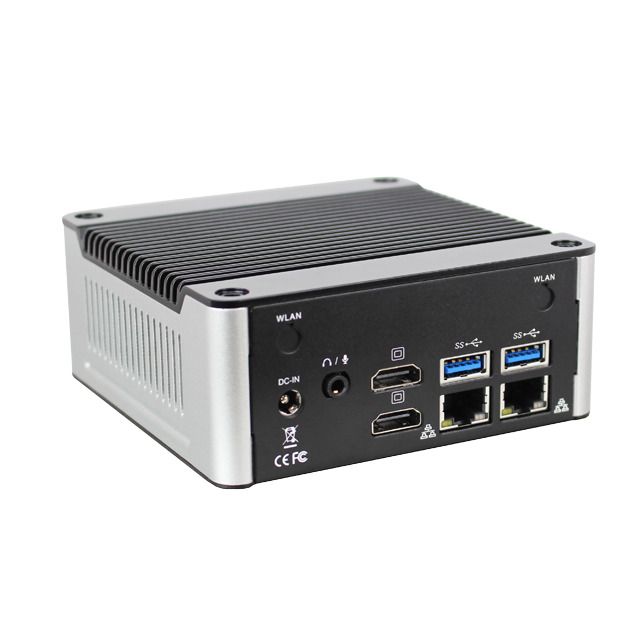

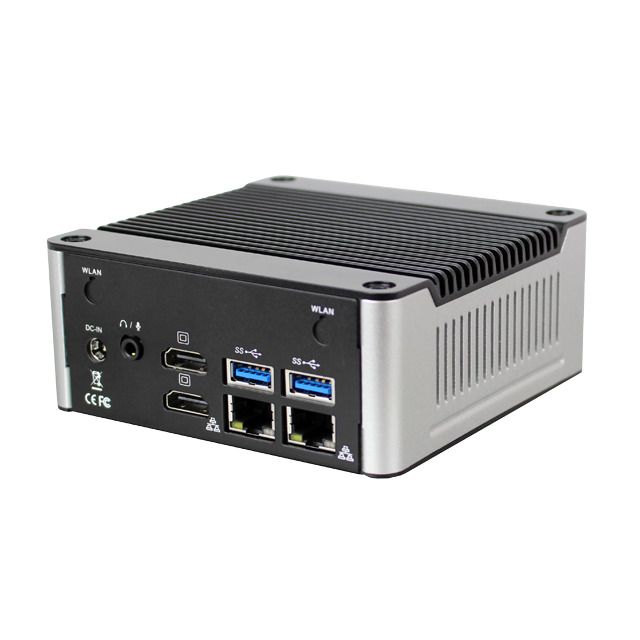

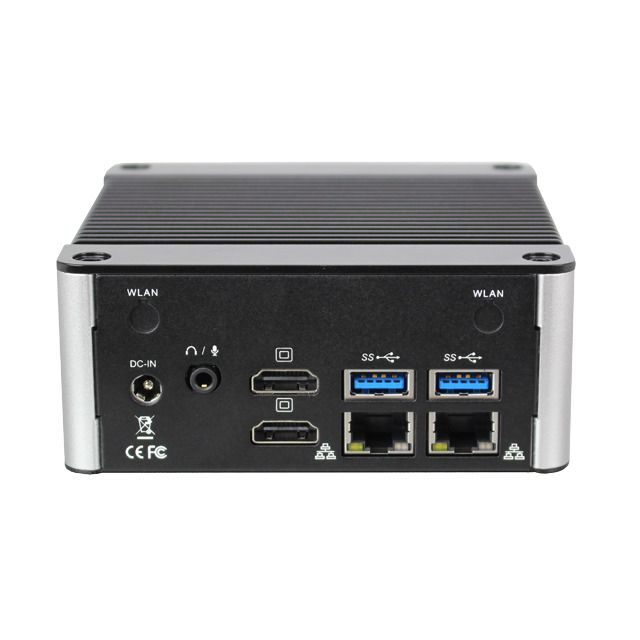

eBox ALJ3455-NRG

0.00 Ft 0.0 HUF 0.00 Ft

0.00 Ft

(0.00 Ft / Units)
  • Storage
  • CPU
  • Max RAM
  • Display
  • Network
  • RAM type
  • USB
  • Serial port
  • I/O ports
  • Audio
  • Expansion
  • Power
  • Temperature range
  • Dimension
  • Housing
  • Mounting

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Háttértárak
Storage Without storage or 120GB v. 128GB mSata SSD or 240GB v. 256GB mSata SSD or 480GB v. 512GB mSata SSD or Storage required
Uncategorized
Max RAM Without RAM or 4GB or 8GB
CPU Intel Celeron J3455
Display 2 x HDMI + 1 x VGA
Network 2 x GBit (Realtek 8111H - PXE diskless boot)
RAM type max. 8 GB (1x SO-DIMM 204-pin DDR3L Non-ECC DDR3L-1866 (1.35V)
USB 4 x USB 3.0
Serial port None
I/O ports 1 x 8 bit GPIO
Audio Realtek ALC662VD Mic-in | Line-out

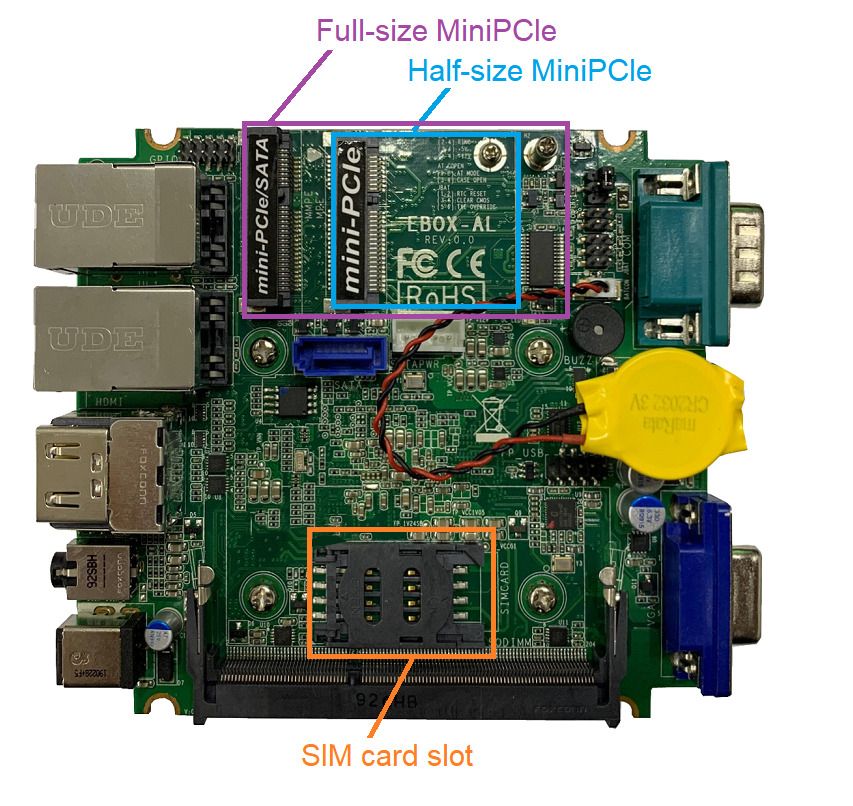

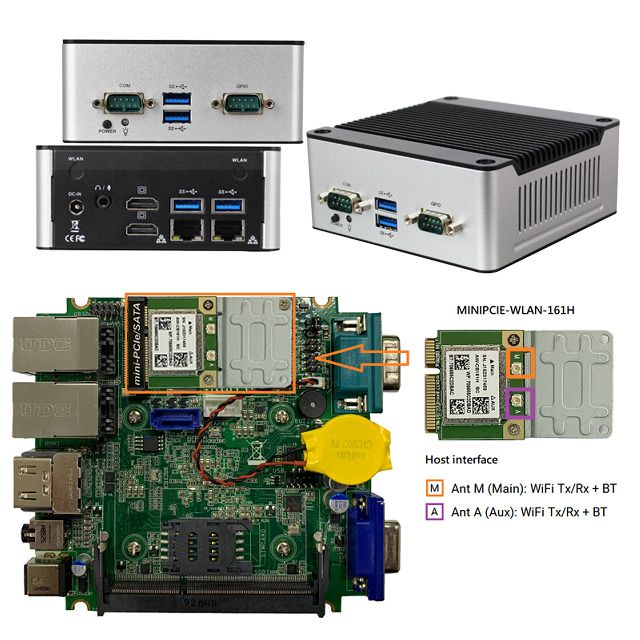

Expansion Belső: 1 x teljes méretű miniPCIe foglalat/mSata | 1 x fél méretű miniPCIe foglalat | 2 x USB2.0 tüskesoron | 1 x Sata port sata DOM eszközhöz | 1 x Sata táp 4 pólusú tüskesoron | 1 x SMBus 5 tüskés csatlakozón
Power DC 12V - 16V
Temperature range 0°C - 60°C (opcionálisan -20°C - 60°C)
Dimension 115mm x 115mm x 48,5mm
Housing Metal housing, passive cooling, heat dissipation via radiators

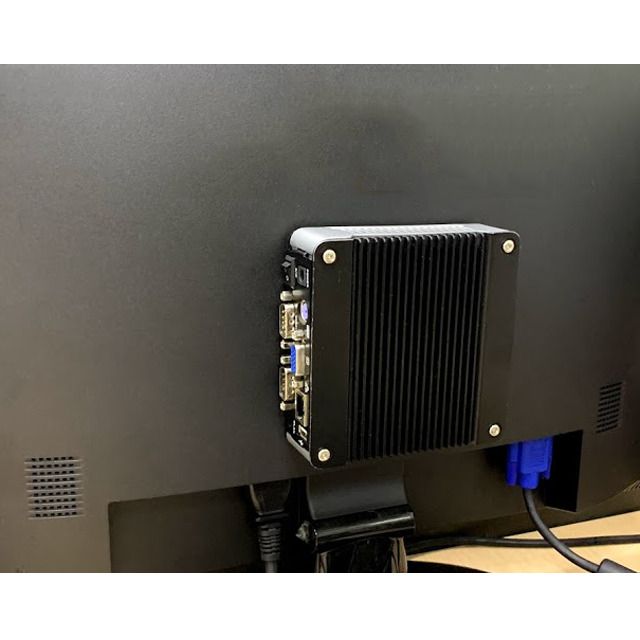

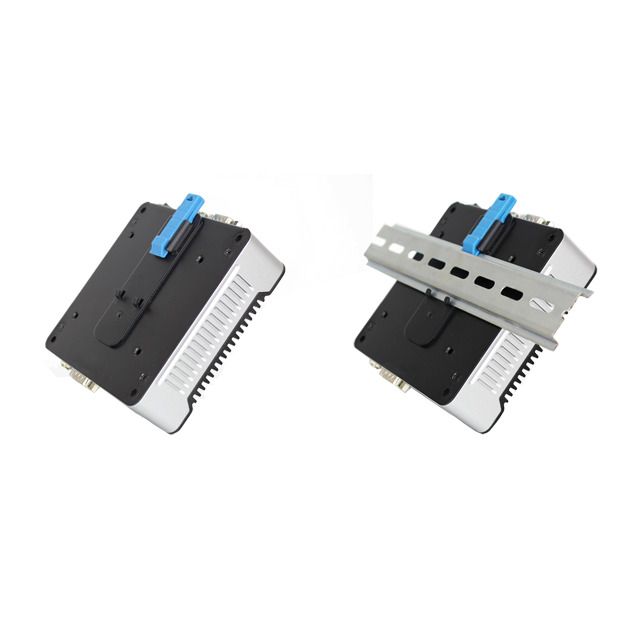

Mounting 100x100 VESA nyílások, opcionális keret/DIN sín rögzítés
